Ibu constructions...(101 domesday)

the whole class gonna build a big dome... so each of us will make the structure (strut). i was in section 2, group 2 (or B), my struts are 2.284meter long and i need to have 2 strut. so here's the process.

24th september

taken from http://www.hbp.usm.my/1b/101/domesday.htm

taken from http://www.hbp.usm.my/1b/101/domesday.htm

telling the guard we want to take the bamboo at rumpun buluh

the site..

measuring the length

some picking the correct bamboo...

making the line for reference..

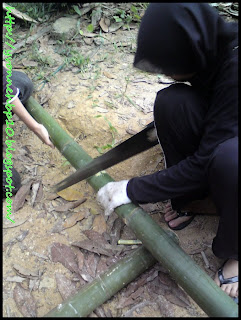

using saw to cut...



27th september

the saw

kikir thingy... i dont know what it is called but its for trimming the connector

pen knife..., parang and kikir

for slicing the bamboo

measuring the correct length (118mm)

making the line...

using kikir and pahat to slice the bamboo into smaller size..

this is how it looks like

the part that are too thin, i used a stopper bamboo to make the structure stronger..


28th september

2nd badge tube arrived

making the mark...

cutting it...we need to cut 6

give to the X man to cut it into one piece

marking the line....

cutting it.... for reference when using machine to make the shape..

using machine to cut



29th september

trimming the connector

burn the connector...

flatten the connector...


30th september

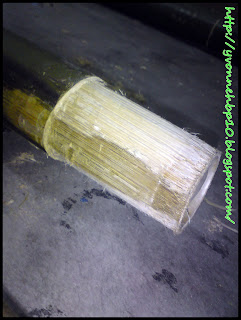

fit in the connector to both side of the bamboo.. this part was a bit loose. so i use small pieces of bamboo to strengthen the grip.

connector with the bamboo

writting down my name...

the mess that we made..



1st october - assemble...


all section 2 assemble...

screw and nuts

phew.... after bringing all the bamboo the assigned place..

connect the bamboo with screw..

section 2 x man giving instructions...

discussing what to do next... as we dont have enough space..

writting down the parts. we have part A to E

fixing the other struts that are still lose... we differentiate all the struts according to groups.

re-enforcing...

re-enforcing....

part of our dome..

the dome...

before we dismissed...
